2M ALUM EXT LL-ALP018R3 BLK - PC DIFF - PLT-12894

SKU:
PLT-12894

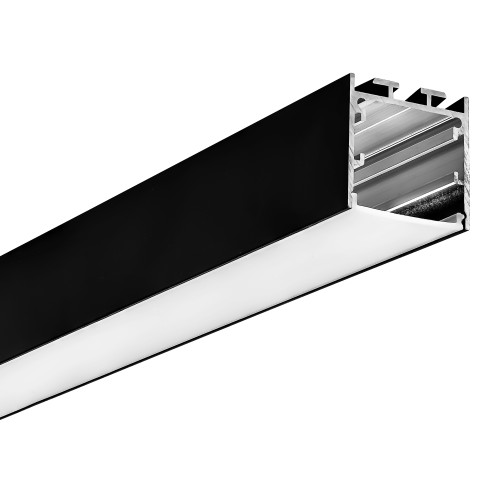

Product image 1
  • Includes frosted polycarbonate lens to protect LEDs and diffuse lighting
  • Aluminum construction allows for highly effective heat dissipation
  • Black finish
  • Max. LED strip and tape light width 24mm (0.95 in.) (sold separately)
  • For a complete set you need: 1 extrusion with lens, 1 set of end caps, and mounting clips (all sold separately)
  • Matching end caps: PLT-12897 (sold separately)
  • Mounting hardware options: metal mounting bracket PLT-12898, suspension cable PLT-12899, 180° flat linking bracket PLT-12891, 90° flat linking bracket PLT-12892, 90° flat linking bracket PLT-12893 (sold separately)
Product Attributes
Brand PLT
Case Quantity 1
Family Pendant Channels, Surface Channels
Finish Black
Height 1.38 in.
Length 78.72 in.
Length Ft 6.56 ft.
Lens Polycarbonate
Material Aluminum
Mounting Pendant, Surface
Supplier LEDLUZ
UPC 842821124141
Use With PLT-12891, PLT-12892, PLT-12893, PLT-12897, PLT-12898, PLT-12899
Warranty 3-Year Limited
Weight 2.9 lb.
Width 1.38 in.
Spec Files
    !
