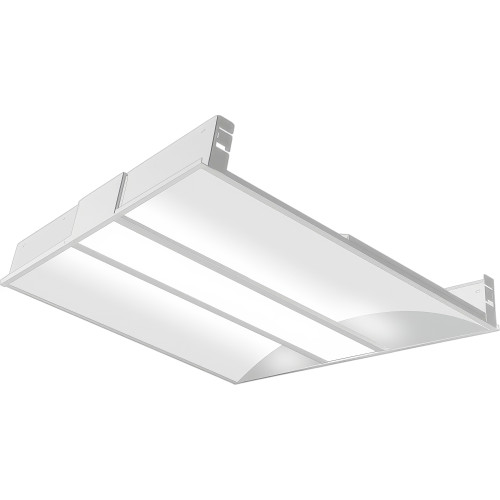

LED 2x4 INDIRECT TROFFER - WATT & CCT SELECT - PLT-90340

SKU:
PLT-90340
  • Direct and Indirect Light
  • Replaces up to a 3 lamp fluorescent fixture
  • Up to 126 LPW
  • LED L70 of up to 54,000 hours
  • Mounts onto T-grid ceilings
  • Aluminum housing acts as a heat sink to maximize life
  • IC rated for insulated and uninsulated ceilings
  • Compatible with 0-10 Volt dimmers
  • Surge protection 1kV
  • UL damp rated
  • White finish
120-277V

120-277V

Dimmable

Dimmable

UL Listed

UL Listed

Product Attributes
Product Brand PLT PremiumSpec
CRI Standard CRI
Case Quantity 1
Color Cool White, Halogen Color
Color Temperature 3000 Kelvin / 3500 Kelvin / 4000 Kelvin / Selectable CCT
Dimmable Yes
Finish White
Fixture Type 2 x 4 Panel/Troffer, Selectable Wattage
Height 3.5 in.
Housing Aluminum
LED Chip Type SMD 2835
LED L70 Life Hours 54,000
LPW 110
Length 47.7 in.
Lens PMMA Acrylic
Lumens 3,667 / 4,662 / 5,756
Mounting Ceiling Grid Mount
Operating Temp -4 Deg. to 104 Deg. F
Ratings and Certifications Damp Location, IC Rated, UL
Supplier OKTCHN
Surge Protection 1kV
Product UPC 842821122345
Voltage 120-277V
Warranty 5-Year Limited
Wattage 30 / 40 / 50
Weight 8.47
Width 23.7 in.
