LED ZONE SELECT BOLLARD 24W - 2400LM MAX 3CCT 120-277V PHOTO - PLT-13717

SKU:
PLT-13717

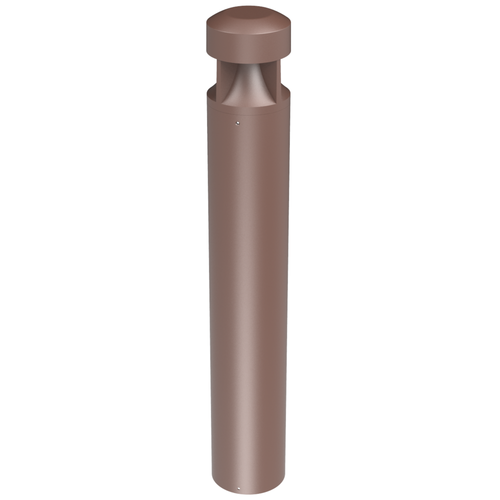

Product image 1
Out of stock

Out of stock

  • Integrated photocell
  • 360-deg. zone lighting
  • Coverage Patterns: Quarter, Half, Three Quarters, Full, and Split Half
  • Corrosion-resistant aluminum housing
  • Adjust CCT, wattage, photocell, and zone using switches located under the head
  • 60,000 LED L70 life hours
  • 4kV surge protection
  • IP65 rated
  • 0-10 Volt dimmable
  • UL rating for wet locations
120-277V

120-277V

Dimmable

Dimmable

UL Listed

UL Listed

Product Attributes
Beam Angle 360 Degree
Product Brand PLT
CRI Standard CRI
Case Quantity 1
Color Temperature 3000 Kelvin / 4000 Kelvin / 5000 Kelvin / Selectable CCT
Diameter 6.3 in.
Dimmable Yes
Finish Bronze
Fixture Type Bollard, Selectable Wattage, Zone Selectable
Height 40.36 in.
IP Rating IP-65
LED Chip Type Bridgelux, SMD 3030
LED L70 Life Hours 60,000
LPW 85
Lens Polycarbonate
Lumens 1,190 / 1,615 / 2,040
Material Aluminum
Metal Halide Equal 100 Watt
Mounting Hardware Included
Operating Temp -40 Deg. to 113 Deg. F
Ratings and Certifications IK08, UL, Wet Location
Sensor Type Photocell
Special Features Photocell Sensor, Wattage and Color Selectable, Zone Selectable
Supplier BSTWNTH
Surge Protection 4kV
Product UPC 842821135673
Voltage 120-277V
Warranty 5-Year Limited
Wattage 14 / 19 / 24
Weight 8.81 lbs.
